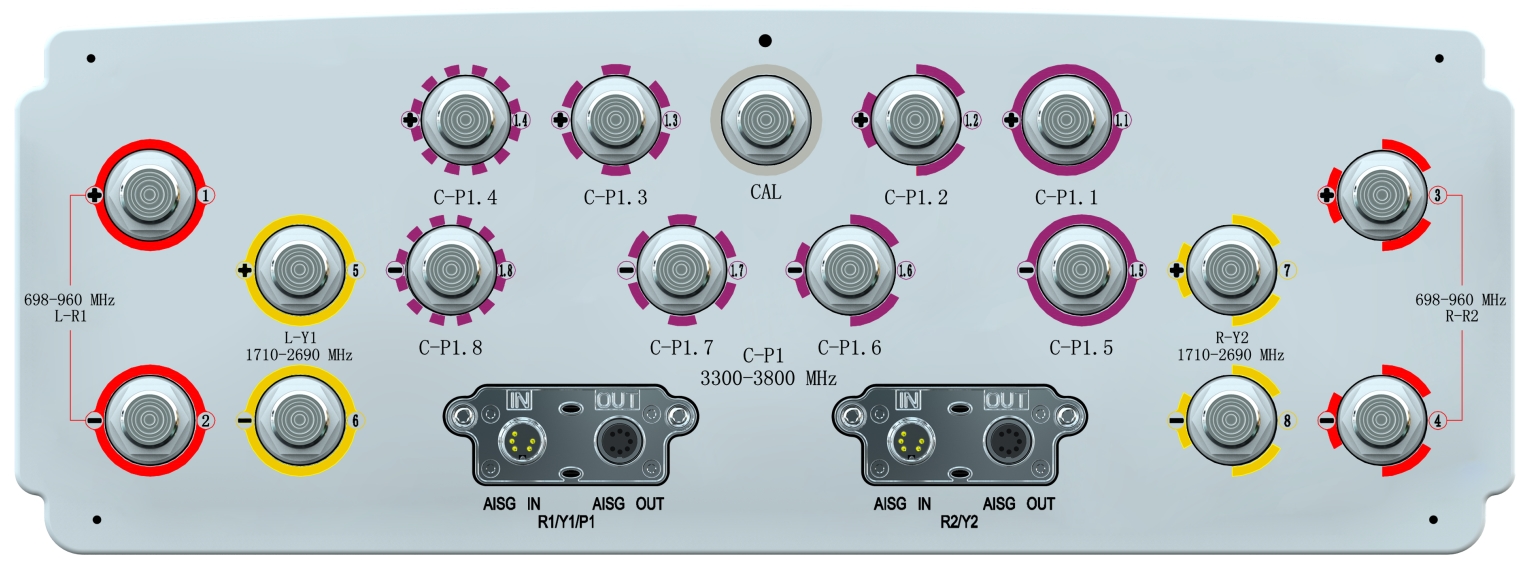

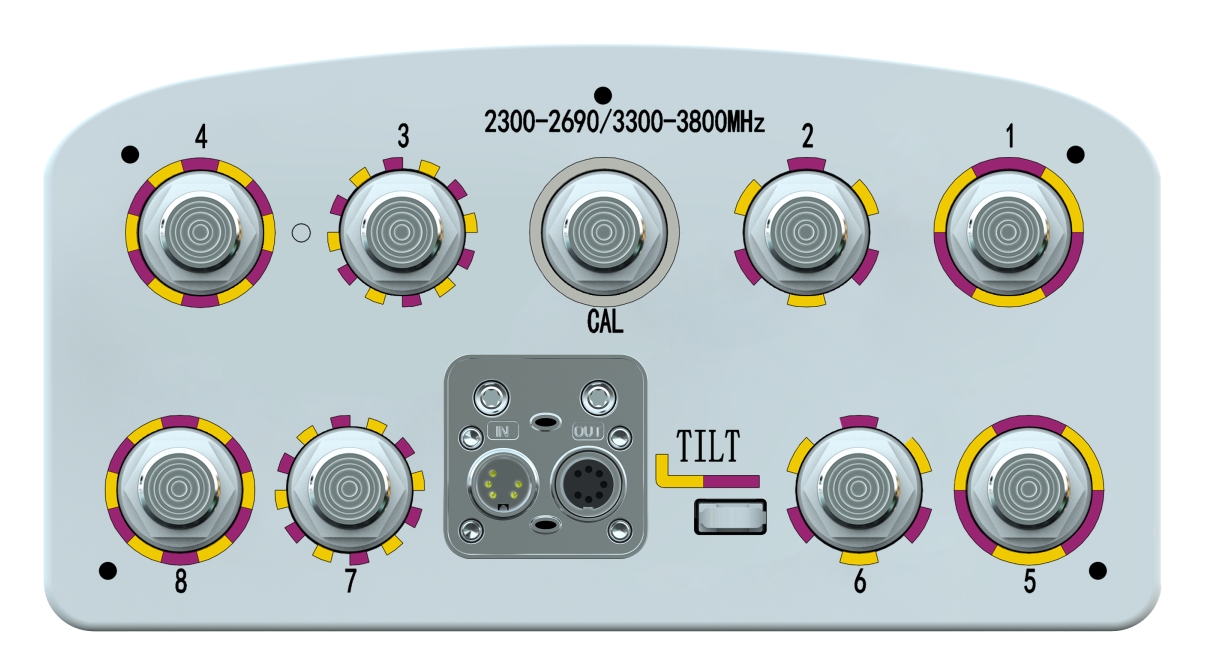

TDD : XXXXPol 2300~2690MHz/3300~3800MHz BCH 65°/65° 17/17dBi 2~12°/2~12° Beamforming

FDD : XXXXPol 698~960MHz×2/1427~2690MHzx2 65°/65° 15/18 dBi 2~12°/2~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

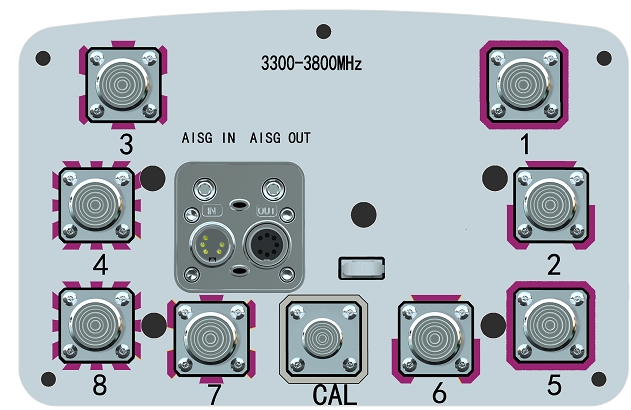

TDD : XXXX Pol 3300~3800MHz 65° 16dBi 2~12° Beamforming.

FDD : XXXXXX Pol 698~960MHz×2/Dual Beam 1710~2690MHz×4 65°/ 33°15.5/17.0dBi 2~12°/2~12°Integrated RCU (Remote Control Unit) Antenna.

TDD : XXXXPol 2490~2690MHzMHz BCH 65° 16dBi 2~12°Beamforming

FDD : XXXXPol 698~960MHz×2/1727~2690MHzx2 65°/65° 15/18 dBi 2~12°/2~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

TDD : XXXXPol 2300~2690MHz BCH 65° 16dBi 2°~12° Beamforming

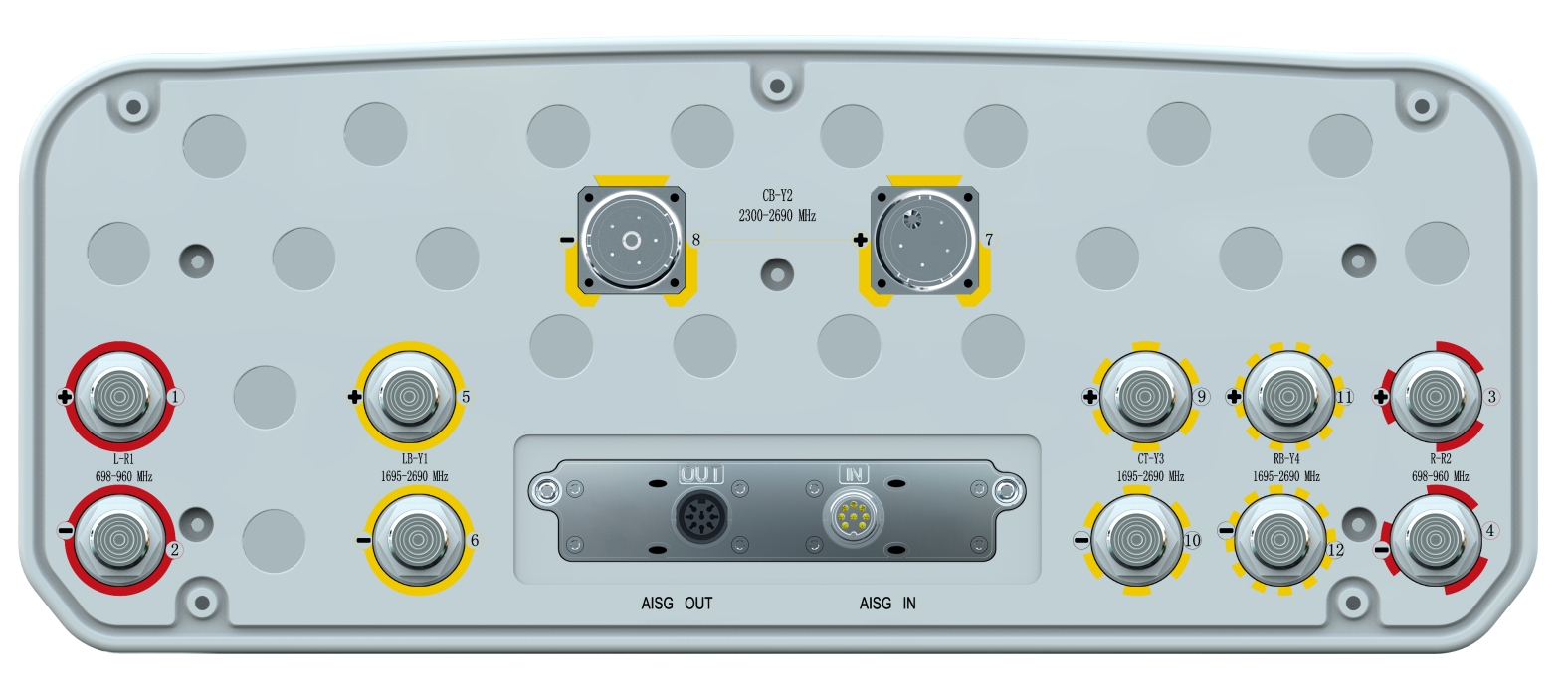

FDD : XXXXXPol 690~960MHz×2/1695~2690MHz×2/1695~2690MHz 65°/65°/65° 15.5/17.5/15.7dBi 2°~12°/2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit)Antenna

XXXXPol 2300~2690MHz 90° 17dBi 2°~12° Integrated and replaceable RCU (Remote Control Unit) Beamforming Antenna.

TDD : XXXXPol 2300~2690MHz/3300~3800MHz BCH 65°/65° 16/16.5dBi 2~12° Beamforming
FDD : XXXXPol 698~960MHz×2/1710~2690MHz×2 65°/65° 14/17dBi 2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

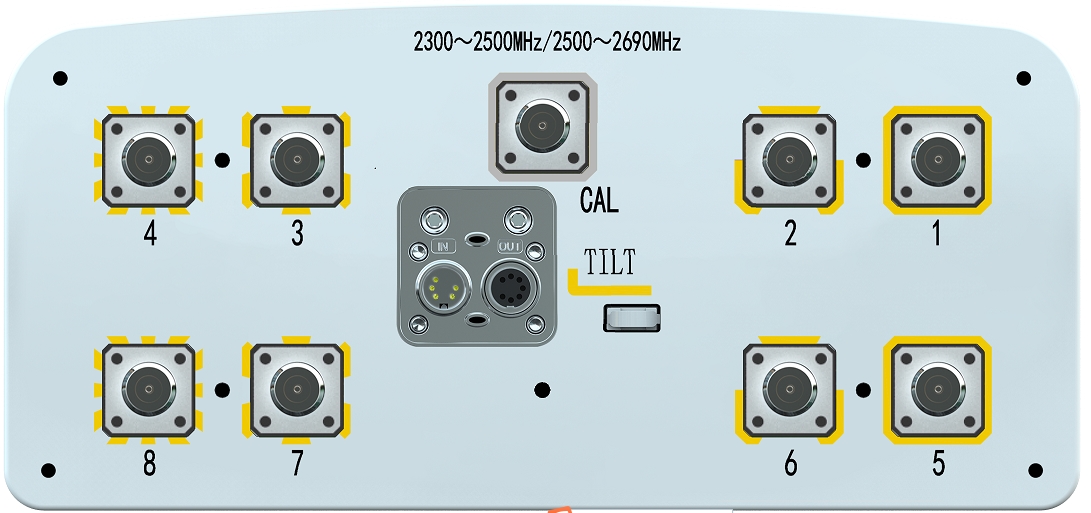

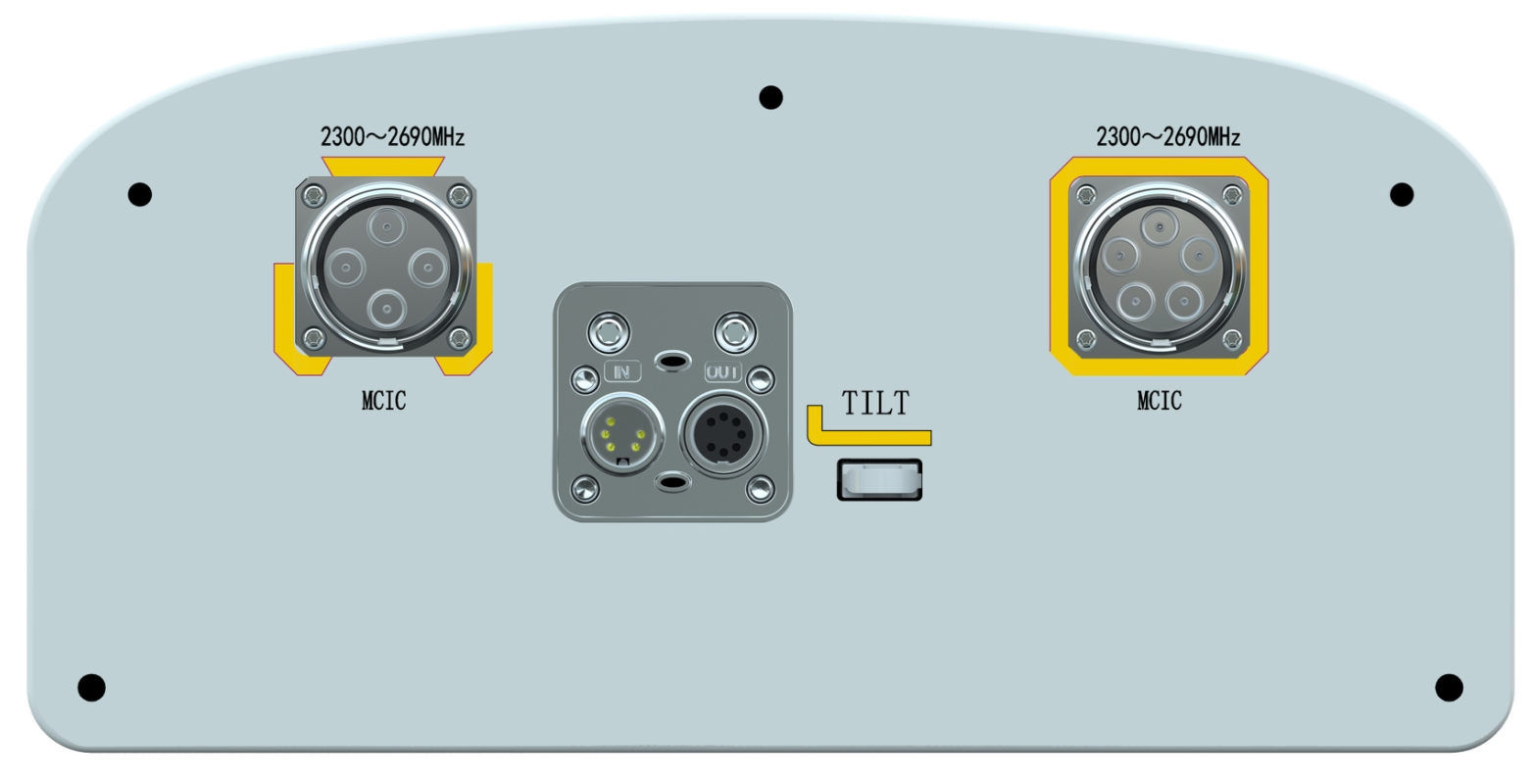

XXXXPol 2300~2690MHz80°/65°±15° 16/16.5dBi Integrated RCU Electrical Downtilt Beamforming Antenna,integrated SBT from Cal port.

Values based on NGMN-P-BASTA requirements.

XPol 2515~2675MHz 65° 15.5dBi 2°~12° Beamforming Antenna, Integrated and replaceable RCU (Remote Control Unit)

TDD : XXXXPol 2300~2690MHz/3300~3800MHz BCH65°/65°17/17dBi 2~12°/2~12° Beamforming

FDD : XXXXXXPol 698~960MHz×2/1427~2170MHz×2/ 2490~2690MHz×2 65°/65°/65° 14/17/17dBi 2~12°/2~12°/2~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

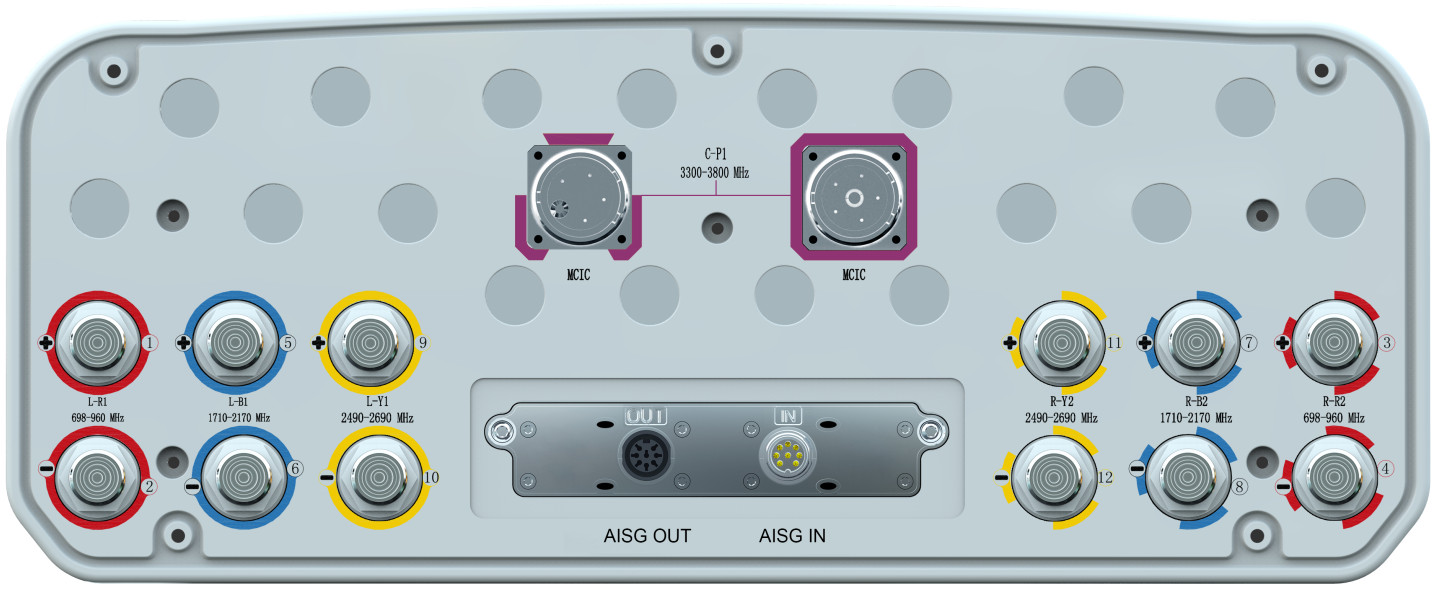

TDD : XXXXPol 3300~3800MHz BCH 65° 17dBi 2~12° Beamforming

FDD : XXXXXXPol 698~960MHz×2/1710~2170MHz×2/ 2490~2690MHz×2 65°/65°/65° 14.1/16.8/17dBi 2°~12°/2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

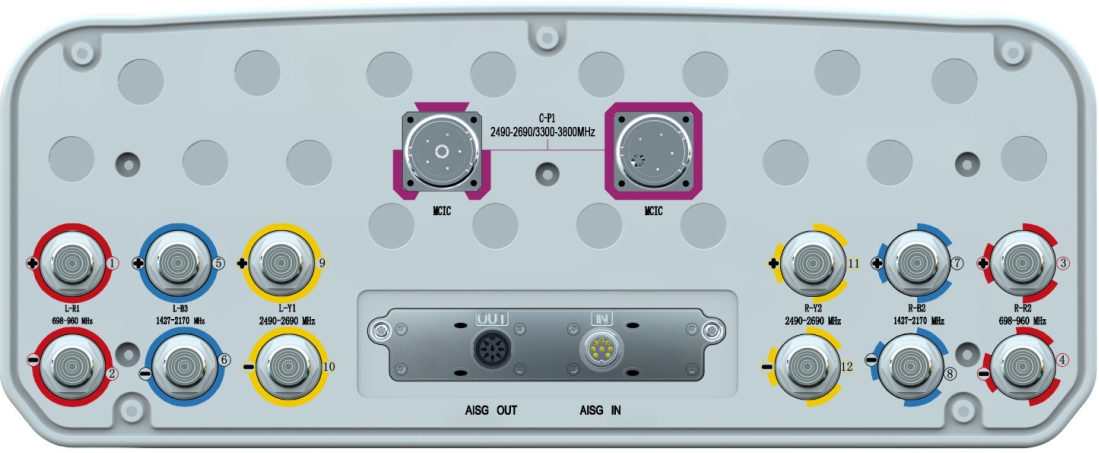

TDD : XXXXPol 2490~2690MHz/3300~3800MHz BCH 65°/65° 17/17dBi 2~12°/2~12° Beamforming

FDD : XXXXXXPol 698~960MHz×2/1427~2170MHzx2/ 2490~2690MHzx2 65°/65°/65° 15/17/17dBi 2~12°/2~12°/2~12° Integrated RCU (Remote Control Unit) Antenna

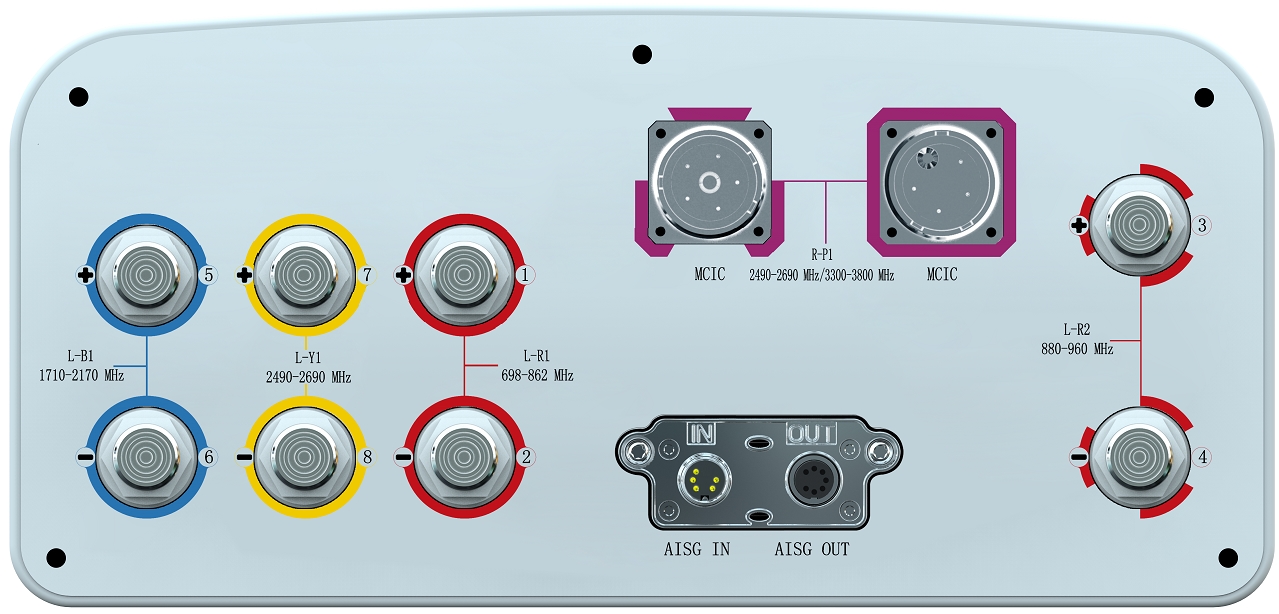

TDD : XXXXPol 2490~2690MHz/3300~3800MHz BCH 65°/65° 16.5/16.5dBi 2~12°/2~12° Beamforming

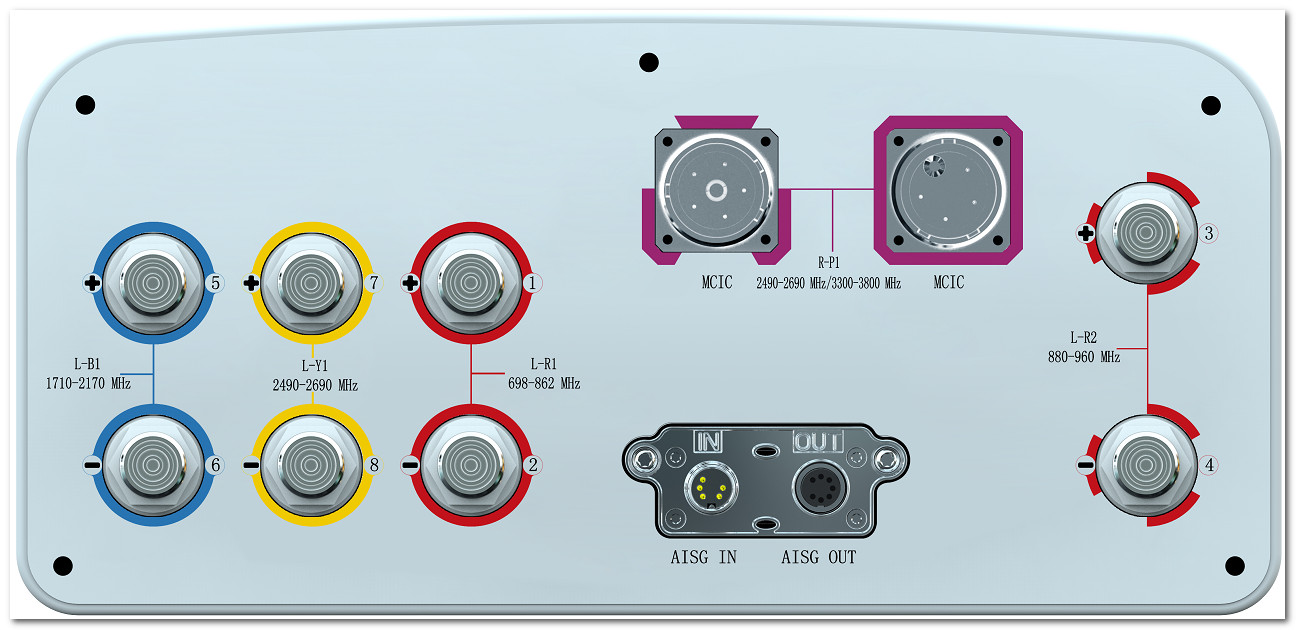

FDD : XXXXPol 698~862MHz/880~960MHz/ 1710~2170MHz/2490~2690MHz 65°/65°/65°/65° 13/13.5/16.5/17dBi 2~12°/2~12°/2~12°/2~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

TDD : XXXXPol 2490~2690MHz/3300~3800MHz BCH 65°/65° 16.5/16.5dBi 2~12°/2~12° Beamforming

FDD : XXXXPol 698~862MHz/880~960MHz/ 1710~2170MHz/2490~2690MHz 65°/65°/65°/65° 14.5/15/16.5/17dBi 2~12°/2~12°/2~12°/2~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

TDD : XXXXPol 2490~2690MHz/3300~3800MHz BCH65°/65°17/17dBi 2~12°/2~12° Beamforming

FDD : XXXXPol 698~960MHz×2/1427~2690MHzx2 65°/65° 15/18 dBi 2~12°/2~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

TDD : XXXXPol 3300~3800MHz 65° 17dBi 2~12° Beamforming

FDD : XXXXPol 698~960MHz×2/1710~2690MHz×2 65°/65° 16/18dBi 2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

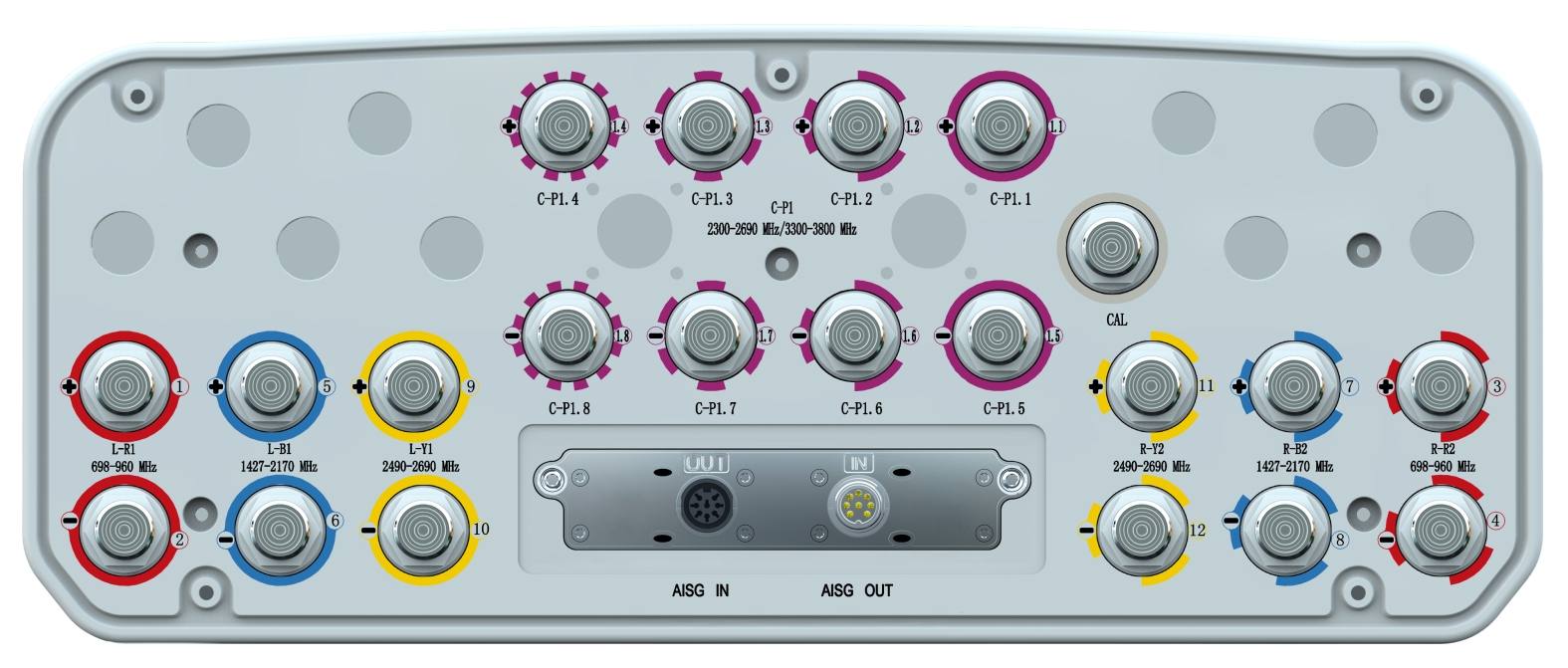

TDD : XXXXPol 2300~2690MHz/3300~3800MHz BCH 65°/65° 17/17dBi 2~12°/2~12° Beamforming

FDD : XXXXPol 698~960MHz×2/1427~2690MHzx2 65°/65° 16/18 dBi 2~12°/2~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

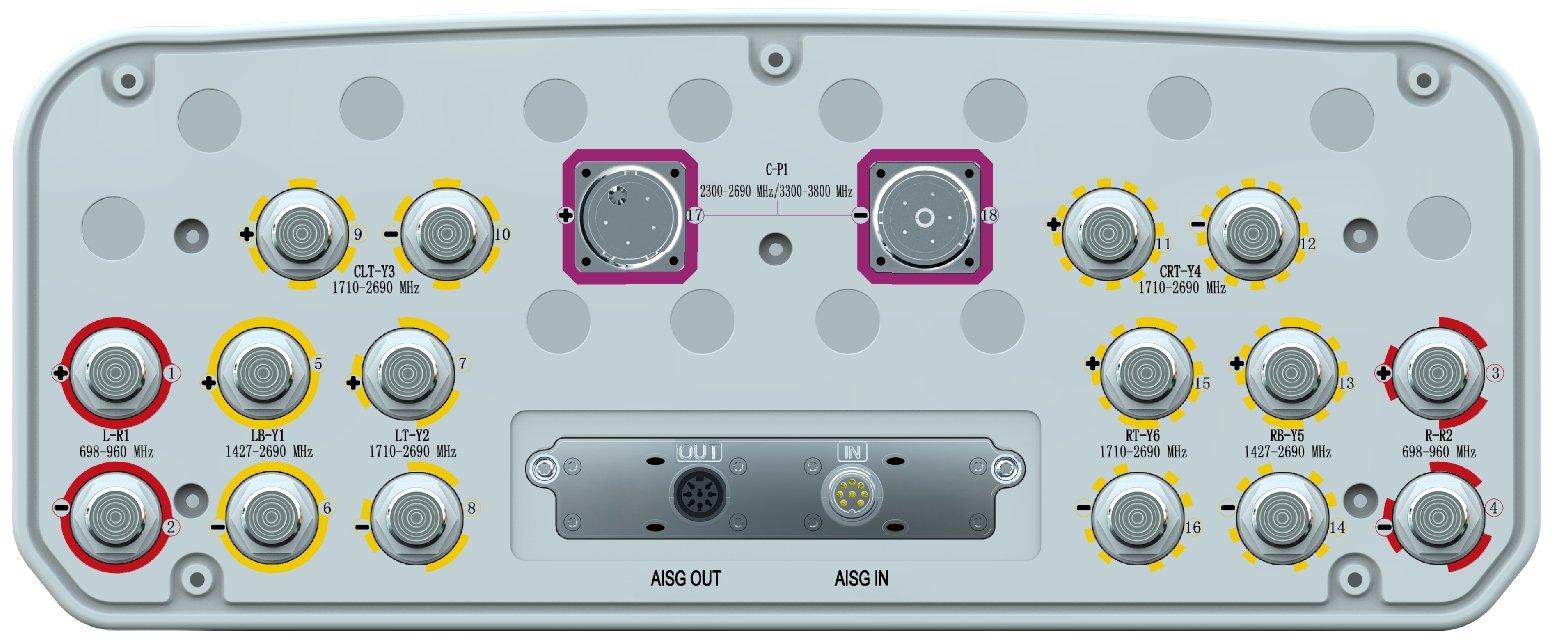

TDD : XXXXPol 2300~3800MHz BCH 65° 16.5dBi 2~12° Beamforming

FDD : XXXXXXXXPol 698~960MHz×2/1427~2690MHz×2/ 1710~2690MHz×4 65°/65°/65° 16.5/17.5/17.5dBi 2°~12°/2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna
