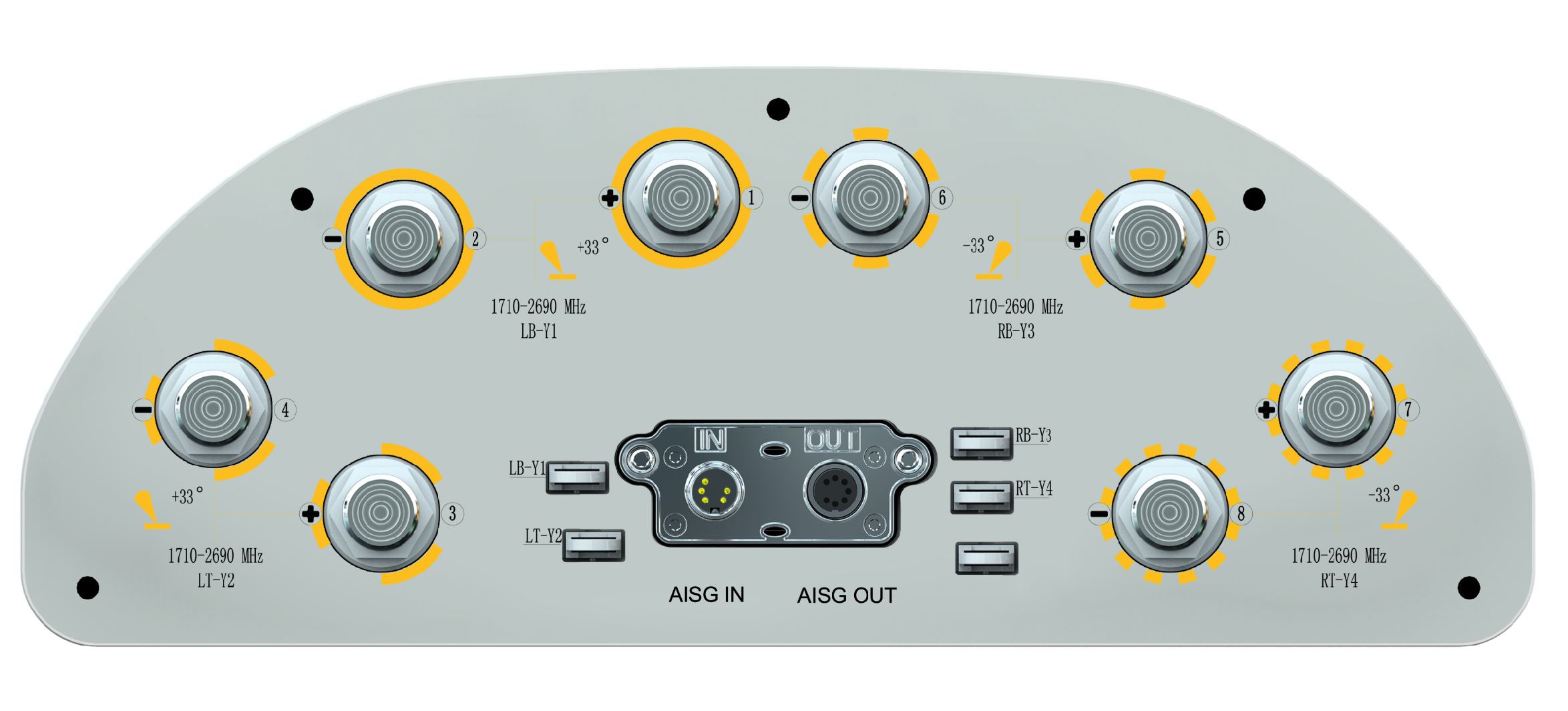

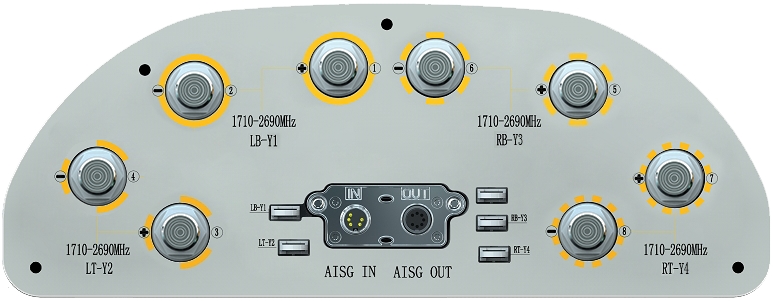

T0004M3R011A

XXXXPol 1710~2690MHz×4 Twin-beam33° 19.4dBi 2°~12° Integrated RCU (Remote Control Unit) Antenna

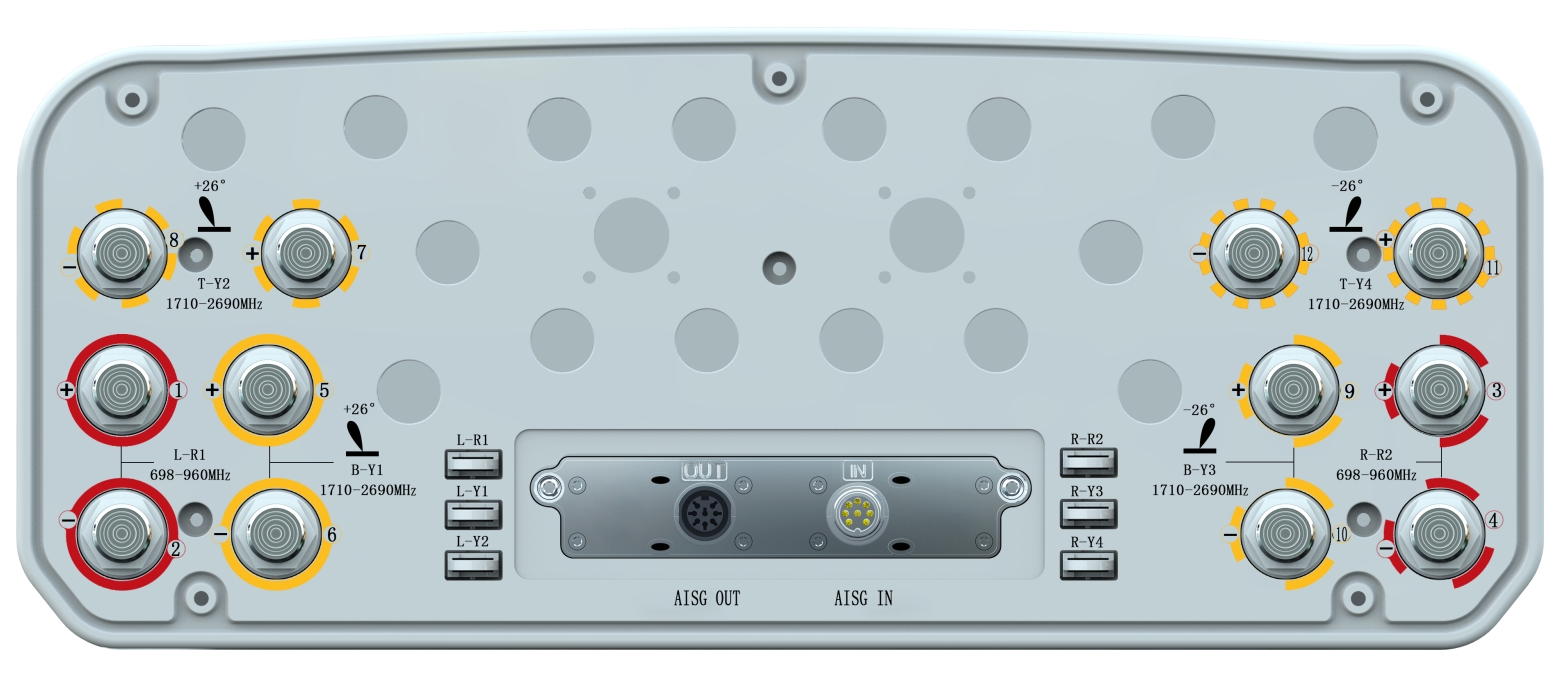

T2004MXR013

XXXXXXPol 698~960MHz×2/1710~2690MHz×4 65°/Dual-beam 33° 15.3/18.7dBi 2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

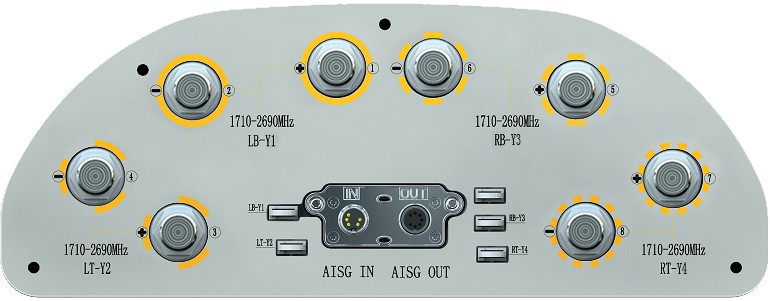

T0004M3R011-v2

XXXXPol 1710~2690MHz×4 Twin-beam 33° 19.4dBi 2°~12° Integrated RCU (Remote Control Unit) Antenna

T2004M3R017

XXXXXXPol 698~960MHz×2/1710~2690MHz×4 65°/Dual-beam 33° 15.3/18.3dBi 2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

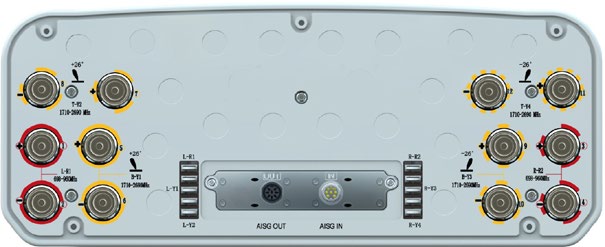

T2004M3R011-V2

XXXXXXPol 698~960MHz×2/1710~2690MHz×4 65°/Dual-beam 33° 15.3/18.7dBi 2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

T2004M3R014

XXXXXXPol 698~960MHz×2/1710~2690MHz×4 65°/Dual-beam 33° 15.3/18.3dBi 2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

T2004M3R013

XXXXXXPol 698~960MHz×2/1710~2690MHz×4 65°/Twin-beam 33° 15.3/18.3dBi 2°~12°/2°~12° Integrated and replaceable RCU (Remote Control Unit) Antenna

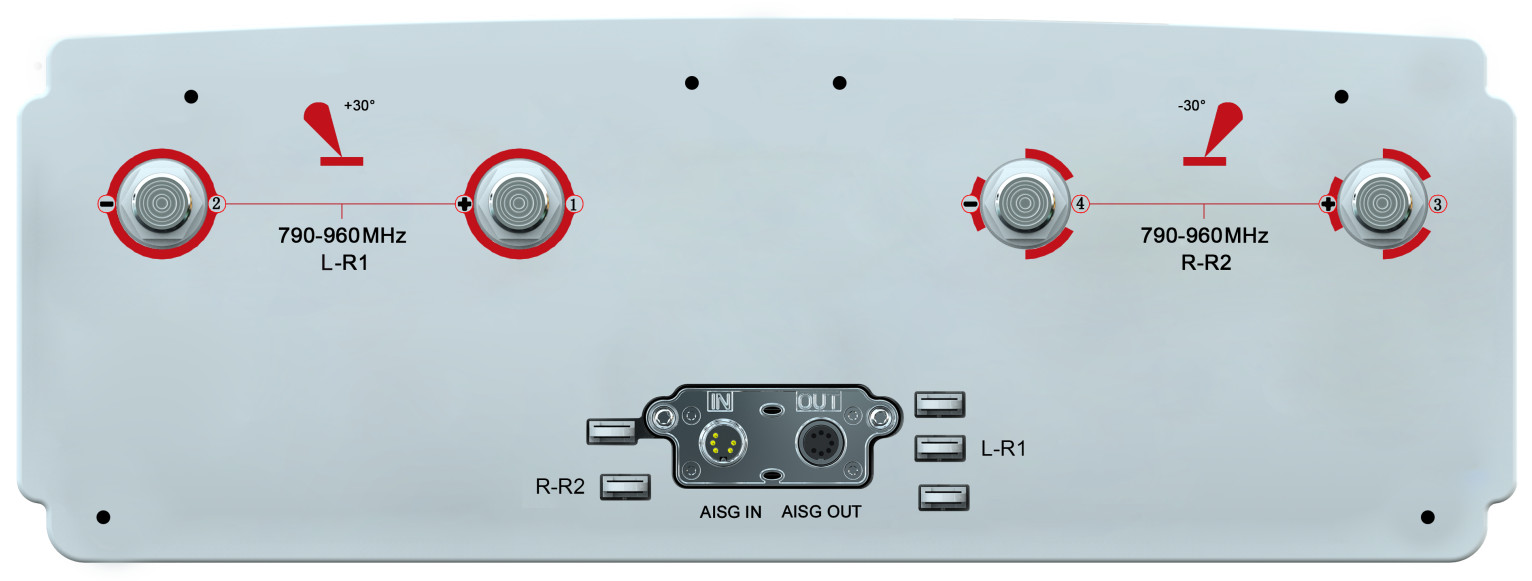

TYDB-709018DEI-33FT2v01

XXPol 790~960MHz×2 Dual-beam 33° 17.5dBi 2°~12° Integrated RCU (Remote Control Unit) Antenna

TYDB-172720DEI4-33FT2v04

XXPol 1710~2690MHz×2 Dual-beam 33° 20dBi 2°~12° Integrated RCU (Remote Control Unit) Antenna.

TYDB-D172719DEI4-33FT2

XXXXPol 1710~2690MHz×4 Dual-beam 33° 19.4dBi 2°~12° Integrated RCU (Remote Control Unit) Antenna

TYDB-D172720DEI4-33FT2

XXXXPol 1710~2690MHz×4 Dual-beam 33° 20dBi 2°~12° Integrated RCU (Remote Control Unit) Antenna

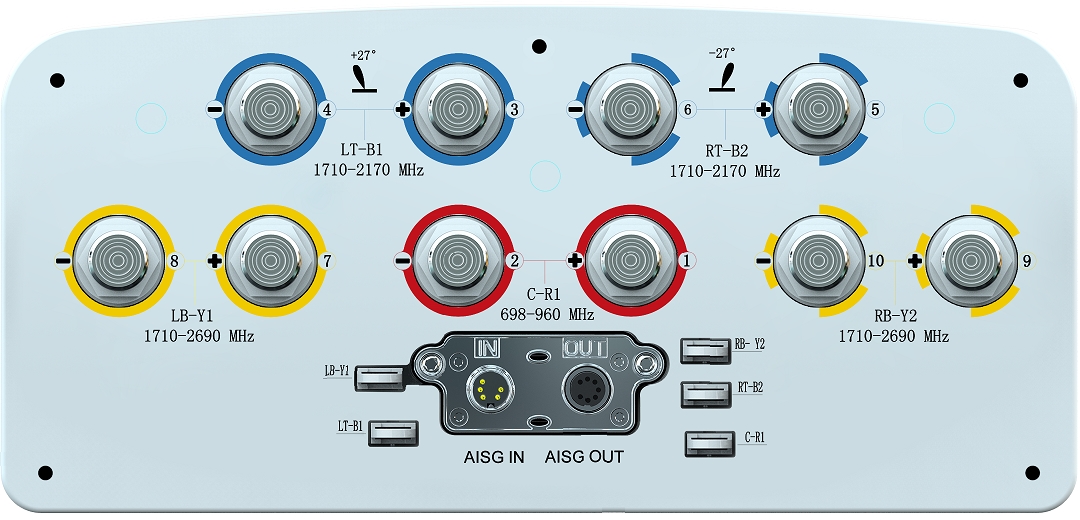

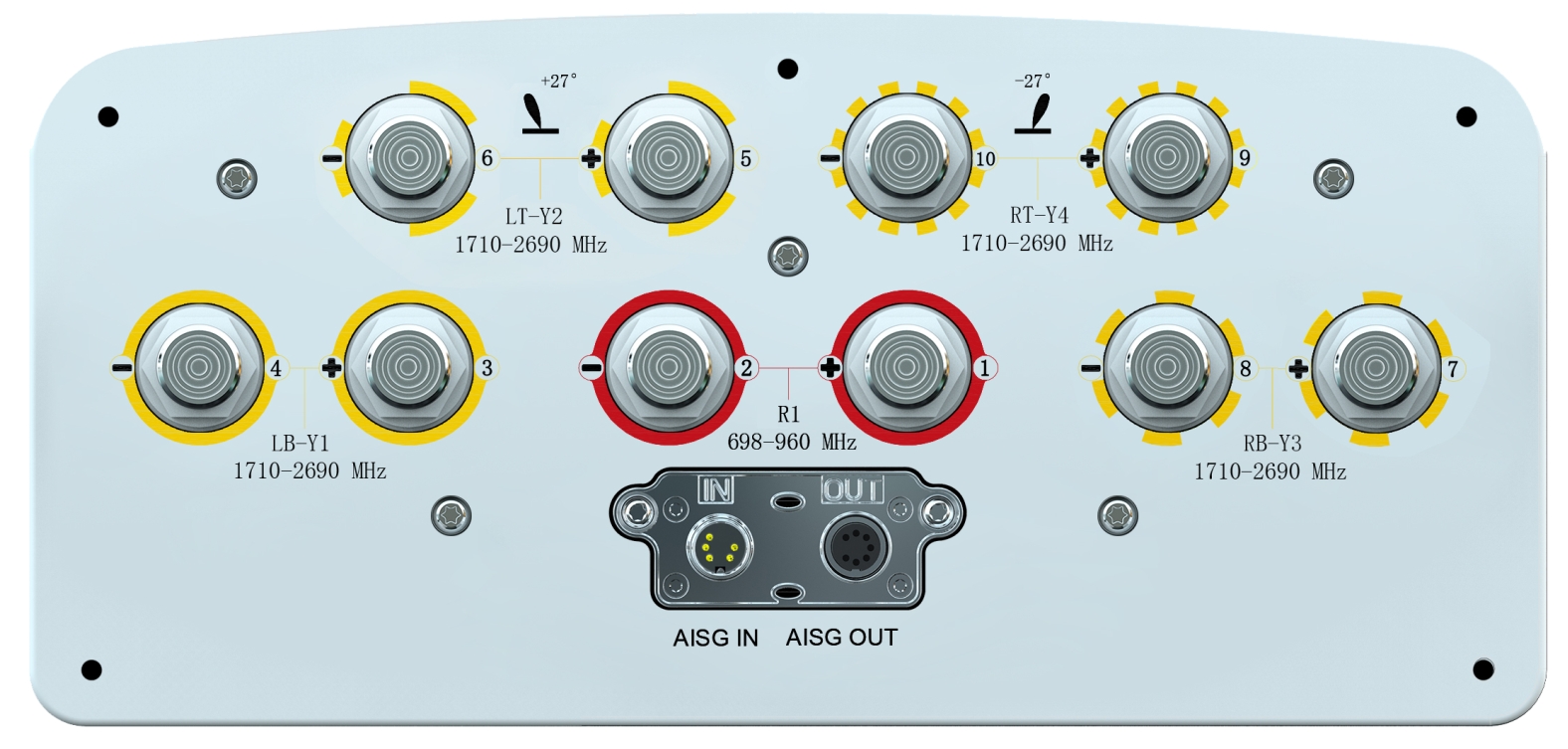

T1004LXR011

XXXXXPol 698~960MHz/1710~2690MHz×2/1710~2690MHz×2 65°/65°/Dual-beam 33° 16.7/17.6/18.5dBi 2°~12°/2°~12°/2°~10° Integrated and replaceable RCU (Remote Control Unit) Antenna

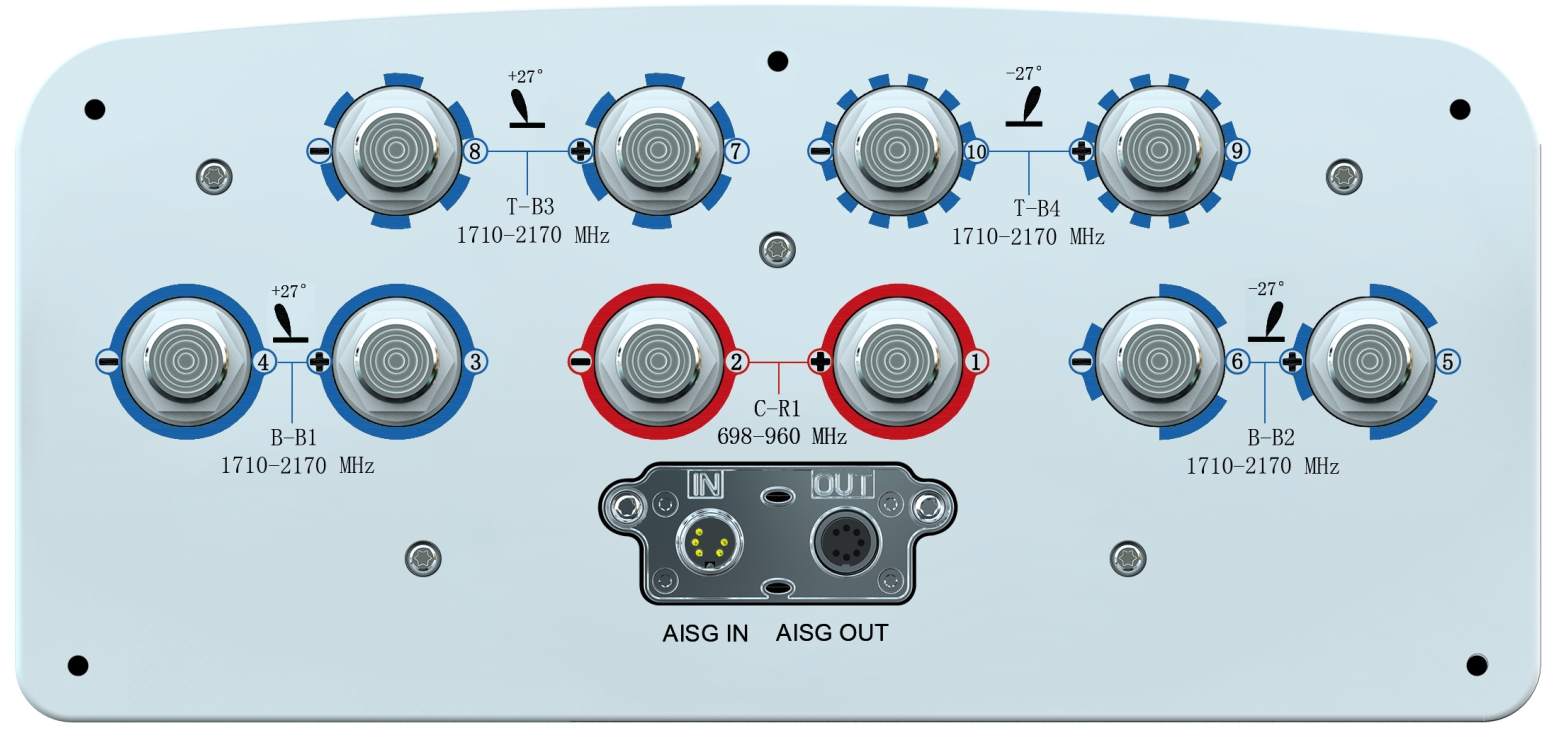

T1022LXR012

XXXXXPol 698~960MHz/1710~2690MHz×2/1710~2170MHz×2 65°/65°/Dual-beam 33° 16.7/17.6/18.2dBi 2°~12°/2°~12°/2°~10° Integrated RCU (Remote Control Unit) Antenna

T1040L3R012

XXXXXPol 698~960MHz/1710~2170MHz×4 65°/Dual-beam 33° 16.5/18.6dBi 2°~10°/2°~10° Integrated RCU (Remote Control Unit) Antenna

T1042LXR011

XXXXXXXPol 698~960MHz/1710~2170MHz×2/2490~2690MHz×2/ 1710~2170MHz×2 65°/65°/65°/Dual-beam 33° 16.5/17/17.5/18.5dBi 2°~12°/2°~12°/2°~12°/2°~12° Integrated RCU (Remote Control Unit) Antenna

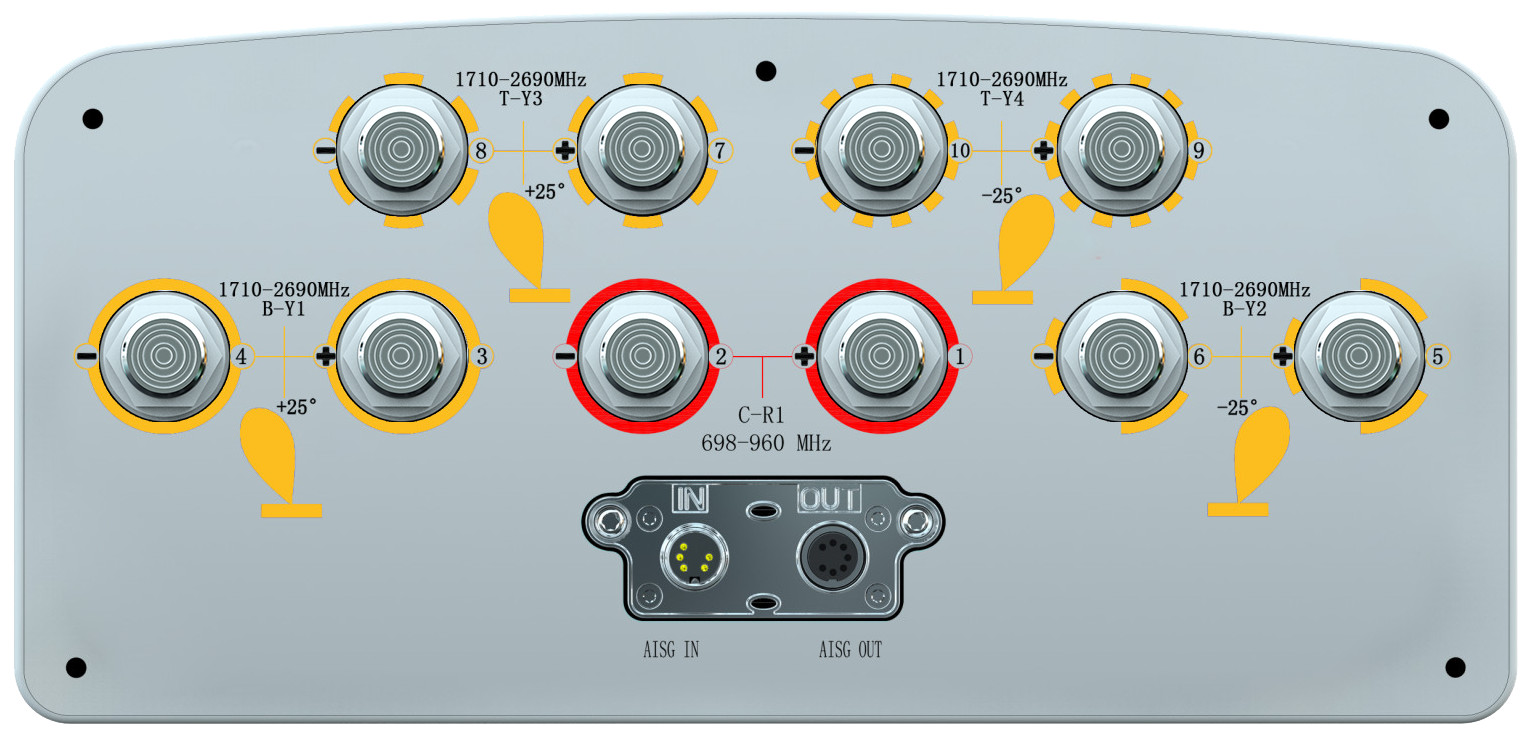

T1004L3R011

XXXXXPol 698~960MHz/1710~2690MHz×4 65°/Dual-beam 33° 16.2/18.5dBi 2°~12°/2°~10° Integrated and replaceable RCU (Remote Control Unit) Antenna

T2004L3R011

XXXXXXPol 698~960MHz×2/1710~2690MHz×4 65°/Dual-beam 33° 16.4/19.8dBi 2°~10°/2°~10° Integrated and replaceable RCU (Remote Control Unit) Antenna

T2040L3R011v4

XXXXXXPol 698~960MHz×2/1710~2690MHz×4 65°/Dual-beam 33° 16.2/19.5dBi 2°~10°/2° ~10° Integrated and replaceable RCU (Remote Control Unit) Antenna

T2004M3R012

XXXXXXPol 698~960MHz×2/1710~2690MHz×4 65°/Dual-beam 33° 14.7/17.7dBi 2°~12°/2° ~10° Integrated and replaceable RCU (Remote Control Unit) Antenna

TYMB-172721DEI5-30FT2

XXXPol 1710~2690MHz×3 Triple Beam 30° 21.5dBi 2°~10° Integrated and replaceable RCU (Remote Control Unit) Antenna

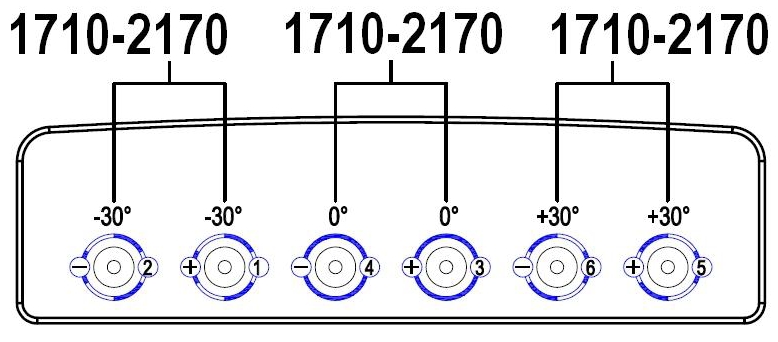

TYMB-182021D5-30FT6v01

XXXPol 1710~2170MHz×3 Triple Beam 26° 21dBi Fixed Electrical Downtilt Antenna

T0003S3R011

XXXPol 1710~2690MHz×3 Triple Beam 30° 21.5dBi 2°~10° Integrated and replaceable RCU (Remote Control Unit) Antenna

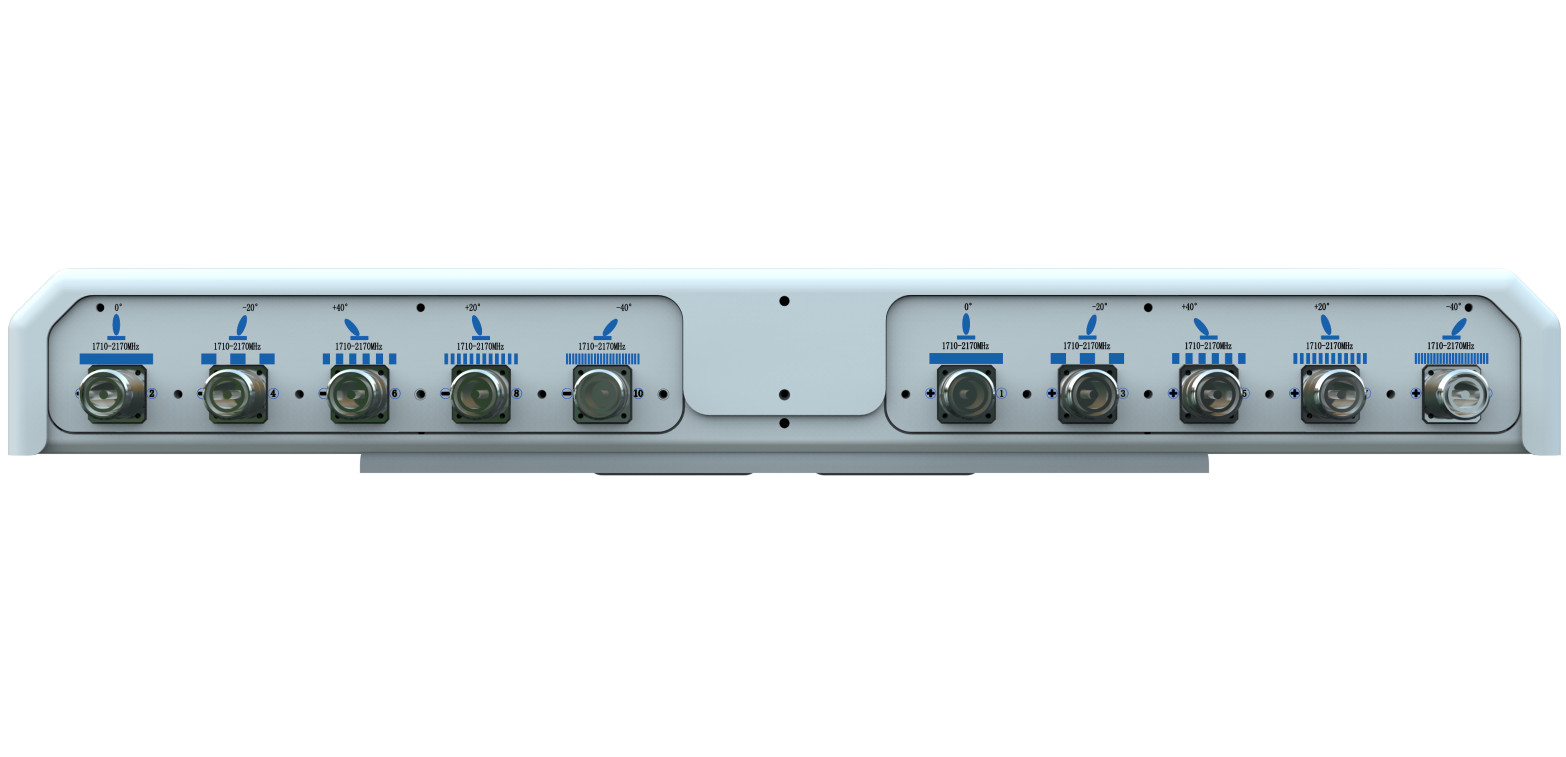

TYMB-182023D10-12T6v01

XXXXXPol 1710~2170MHz×5 Multi Beam 12° 23dBi Fixed Electrical Downtilt Antenna

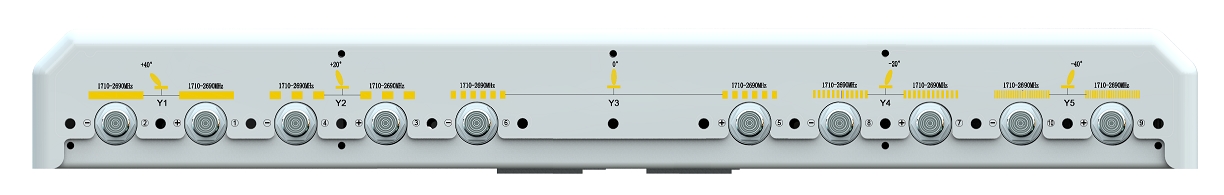

TYMB-172723D10-12T6v01

XXXXXPol 1710~2690MHz×5 Multi Beam 12° 23dBi 6° Fixed Electrical Downtilt Antenna

TYDB-182020DEI4-33FT2v04

XXPol 1710~2170MHz×2 Dual-beam 33° 19.5dBi 2°~12° Integrated RCU (Remote Control Unit) Antenna
