The 5G fronthaul solution based on Tongyu 25G WDM has been widely used in the 5G new infrastructure
2021-08-14
Optical communication network is the most basic infrastructure for 5G construction, and high-speed and stable optical modules are one of the key products. With years of R&D, production and service experience, as well as keen market sense, Tongyu OPWAY has pre-researched SFP28 25G series products before 5G network construction, and launched SFP28 25G LR, SFP28 25G CWDM, LWDM, MWDM and other series products in an industry-leading when the 5G network was built.
One of the 25G CWDM-based 5G FrontHaul solutions, using the combined / splitter to achieve wavelength routing, saving fiber. Single wavelength can support 25Gbps rate to meet eCPRI requirements. 25G optical module can not only replace 10G optical module, but also smoothly upgrade to higher speeds, such as 100G, 200G.The 25G CWDM/DWDM/LWDM solution provided by Tongyu can meet the higher requirements for bandwidth, delay, synchronization, reliability, and flexibility of the fronthaul.

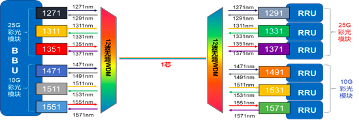

This solution uses CWDM wavelength division multiplexing technology with individual channel spacing of 20nm and operating wavelengths from 1270nm to 1610nm. Usually, operators use the first 6 wavelengths (1271nm to 1371nm) for 5G fronthaul. At the same time, for some base stations with a large number of users, limited fibre resources and site resources, Tong Yu uses the first 6 wavelengths for the 5G fronthaul and the last 6 wavelengths for the 4G fronthaul, solving the problem of site sharing of 4G/5G and reducing cost.
The solution has been widely used in Guangdong Unicom, Shandong Unicom, Shandong Telecom, Guizhou Unicom, Shaanxi Telecom and other customers. In the 5G fronthaul business field of major operators in China, Tongyu OPWAY's SFP28 25G fronthaul products have passed the heavy test of the outdoor working environment of tens of degrees below zero in winter in Northeast China and more than 70 degrees in summer in South China. Tongyu OPWAY's products always work on the field with high reliability.

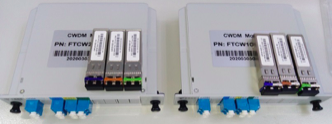

Tongyu’s 25G WDM Product
6 in 1 point-to-point（5G fronthaul）
12 in 1 point-to-point（4G/5G fronthaul）
